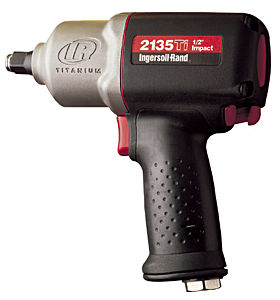

2135Ti Series Air Impact Wrench
2135Ti Series Air Impact Wrench Parts List - Ingersoll Rand
View the Parts Diagram (PDF)
| Item | Part Number | Part Description | Price |
| IR-2135-A40 | Housing Assy (2135Ti and 2135Ti-2) | $69.00 | |
| IR-2135Qti-A40 | Housing Assy (2135Qti and 2135QTi-2) | $66.50 | |
| IR-2135Pti-A40 | Housing Assy (2135PTi) | $77.00 | |
| 2 | IR-2135-638 | Screw, Hammer Case (4 required) | $2.50 |
| 3 | IR-2135Ti-301 | Nameplate (2135Ti, 2135Ti-2 & 2135PTi) | $2.50 |
| 5 | IR-WARNING-2-99 | Warning Label | $3.00 |
| * | IR-2135-D249 | Power Regulator Assy | $12.50 |
| 7 | IR-2131-6 | Retaining Ring | $2.50 |
| 8 | IR-2131-97 | Ball Bearing (2 required) | $8.00 |
| 9 | IR-2131-3A | Cylinder (2135-3) | $25.00 |
| 10 | IR-2135-53 | Rotor | $70.00 |
| +11 | IR-2135-42A-7 | Vane Pack (set of 7) | $25.00 |
| 12 | IR-2131-11 | End Plate | $45.00 |
| +13 | IR-2135-36 | Hammer Case Gasket | $3.50 |
| * | IR-2135-THK1 | Hammer Kit (2135Ti and 2135QTi) | $75.00 |
| * | IR-2135-2-THK1 | Hammer Kit (2135Ti-2 and 2135QTi-2) | $88.50 |
| IR-2135Pti-THK1 | Hammer Kit (2135Pti and 2135QPTi) | $101.00 | |
| * | IR-2135-K703 | Hammer Frame Assy Kit | $60.00 |
| * | IR-231B-A626 | Anvil Assy (2135Ti and 2135QTi) | $47.00 |
| * | IR-231B-A414 | Anvil Assy (2135Ti-2 and 2135QTi-2) | $38.00 |
| * | IR-231B-A726 | Anvil Assy (2135PTi and 2135QPTi) | $72.50 |
| +17 | IR-R1A-159 | O-Ring, Anvil (2135Ti and 2135QTi) | $2.00 |
| IR-5UHD-718 | Socket Retainer Spring (2135PTi and 2135QPTi) | $2.50 | |
| +18 | IR-231-425A | Retaining Clip (2135Ti and 2135QTi) | $3.50 |
| IR-804-716 | Socket Retainer (2135PTi and 2135QPTi) | $4.00 | |
| 19 | IR-2315-941 | Bushing, Hammer Case | $14.00 |
| * | IR-2135-D727 | Hammer Case Assy | $214.00 |
| 21 | IR-D0F9-879 | Grease Fitting | $11.00 |
| +* | IR-2135-D93 | Trigger Assy | $4.50 |
| +23 | IR-2131-283 | Gasket | $2.50 |
| * | IR-2131-A329 | Reverse Valve Assy | $14.00 |
| 26 | IR-2135-D565 | Inlet Bushing Assy (incl. 27, 28) | $19.50 |
| 27 | IR-2131-57 | Inlet Clip | $3.50 |
| 28 | IR-2131-K303 | Inlet Parts Kit | $14.00 |
| 29 | IR-2135-K75 | Button Kit | $7.00 |
| * | IR-2135-TK2 | Tune-Up Kit (2135-TK2) | $39.00 |
| * | IR-2131-322 | Inlet Clip Removal Tool | $12.50 |
| +* | IR-115-LBK1 | Air Care Kit (grease gun, grease, oil) | $42.50 |
| * | IR-115-4T | Grease (replacement tube for LBK1) | $11.00 |
| * | IR-10Z4 | Air Tool Oil (4 oz. bottle) | $4.50 |
| * | IR-105-1LB | Grease (1 lb. can) | $21.00 |
| * | IR-105-8LB | Grease (8 lb. can) | $140.50 |
* Not illustrated in the PDF
+ To keep downtime mininum, it is desirable to have on hand certain parts. We recommend that you stock one (pair or set) of each part indicated by a (+) for every four tools in service.
